High Performance Low Loss Transformer Core

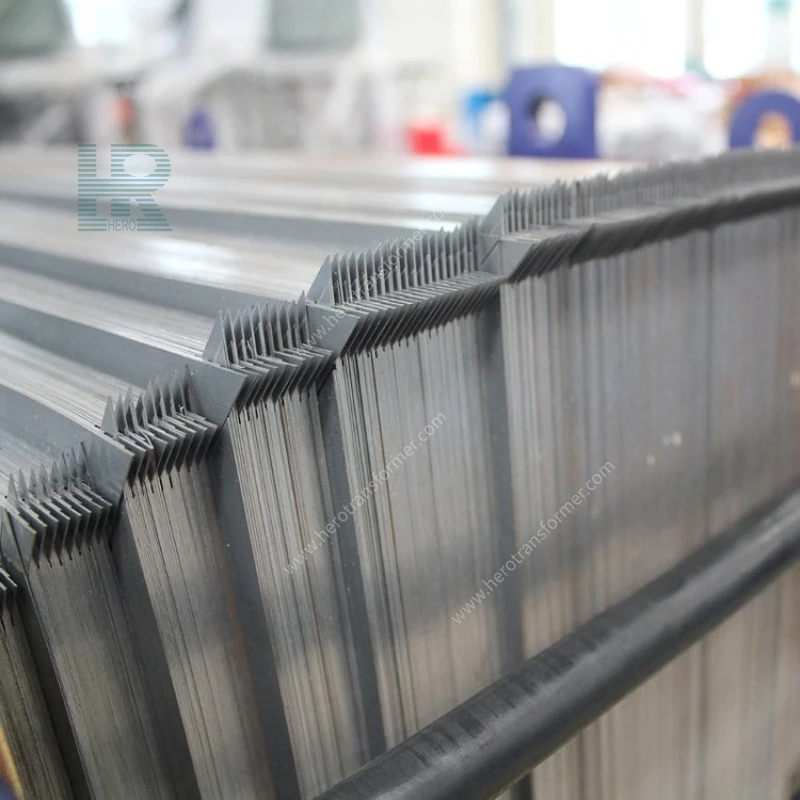

This high-performance, low-loss transformer core is a high-quality magnetic circuit core component suitable for various high-efficiency transformer equipment, meeting domestic and international energy-saving and efficiency standards. The product uses high-grade oriented silicon steel, iron-based amorphous alloys, and other high-quality raw materials, combined with fully automated precision winding, laser marking, and a 45° fully oblique joint stepped lamination process, significantly reducing core hysteresis and eddy current losses. The product features stable magnetic performance, extremely low no-load loss, low operating noise, and long service life, and is widely used in distribution transformers, dry-type transformers, industrial reactors, UPS uninterruptible power supplies, and new energy inverters, among other electromagnetic equipment.
Compared to ordinary laminated cores, this series of low-loss cores optimizes the magnetic circuit structure, reduces the air gap in the magnetic circuit, and upgrades the interlayer insulation coating and silicon steel sheet thickness ratio, significantly improving the overall energy efficiency of the transformer and helping customers reduce equipment operating power consumption and carbon emissions in the long term.
1. Ultra-Low Loss Grain-Oriented Silicon Steel Core
Raw Materials: Baosteel, Wuhan Iron and Steel, and imported high-grade laser-etched grain-oriented electrical steel, thickness specifications 0.18/0.23/0.27/0.30mm, grades including B18R065, B20R070, M085-23, etc.
Product Advantages:
Extremely low iron loss under 1.50Hz, 1.7T operating conditions, reducing losses by 15%~25% compared to conventional 0.35mm silicon steel cores, meeting the production requirements of Class I energy efficiency transformers;
High permeability, low excitation current, stable magnetic flux density under long-term full-load operation;
Strong mechanical structure rigidity, excellent resistance to short-circuit impact, convenient coil winding and overall assembly;
Wide temperature range (-40℃~130℃), stable performance in outdoor power grid equipment.
2. Iron-based Amorphous Alloy Low-Loss Core (Top-Tier Energy-Saving Model)
Raw Materials: 0.025mm ultra-thin iron-based amorphous strip, with an amorphous atomic structure.
Product Advantages:
No-load loss is reduced by 50%~75% compared to ordinary silicon steel cores, resulting in significant energy savings in light-load standby conditions;
Low magnetostriction coefficient, reducing operating noise by 3~8 dB, suitable for power distribution in residential and commercial buildings;
High material resistivity effectively suppresses eddy current generation, resulting in less heat generation during 24-hour continuous operation;
Environmentally friendly and recyclable material, significantly reducing the transformer's annual carbon dioxide emissions, meeting carbon neutrality and energy-saving requirements.
1. Low loss and high energy efficiency, resulting in lower electricity costs over the long term;
2. Low noise and low heat generation, reducing equipment heat dissipation pressure and extending the overall lifespan of the transformer;
3. Good magnetic performance consistency, with minimal performance fluctuations during mass production;
4. Anti-aging and corrosion resistant, stable operation in various indoor and outdoor environments;
5. Supports customized sizes, capacities, and materials; custom molds can be created based on customer transformer drawings.
