HUARUI
10kva 8.8-0.4kv Oil Transformer

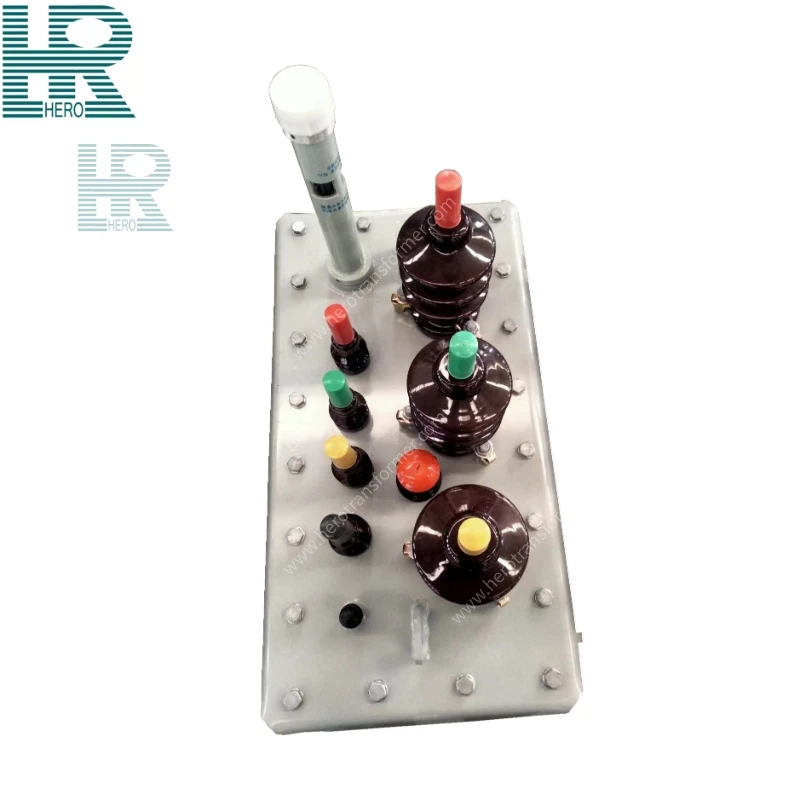

Model SM-10kva oil-immersed sealed distribution transformer is our compact-type power-supply transformer. The rated voltage ratio is 8.8KV/400V. It adopts fully-sealed tank design, outdoor installation, low-loss silicon-steel-sheet core, stable performance and little-maintenance, well-suited for small-scale residential-area power-supply, rural-grid projects and scattered-load power distribution.
|
Model |
SM11-10kva |
|
Phase |
3 |
|
Frequency |
50HZ |
|
Primary Voltage/High voltage |
8.8kv |
|
Secondary voltage/Low voltage |
400v |
|
Connection Symbol |
Dyn1 |
|
On load loss |
55W |
|
No load loss |
260W |
|
No load current |
2.1% |
|
Impedance voltage |
3.62% |
|
Tap range of NLTC(DETC) |
±5% |
|
Oil weight |
45kg |
|
Total wight |
190kg |
|
Dimensions(L*W*H) MM |
750*490*810 |
Commercial complex power distribution, light manufacturing factories, small PV/ wind booster stations, urban residential substations, mining auxiliary power supply.
