100kva Oil Filled Transformer

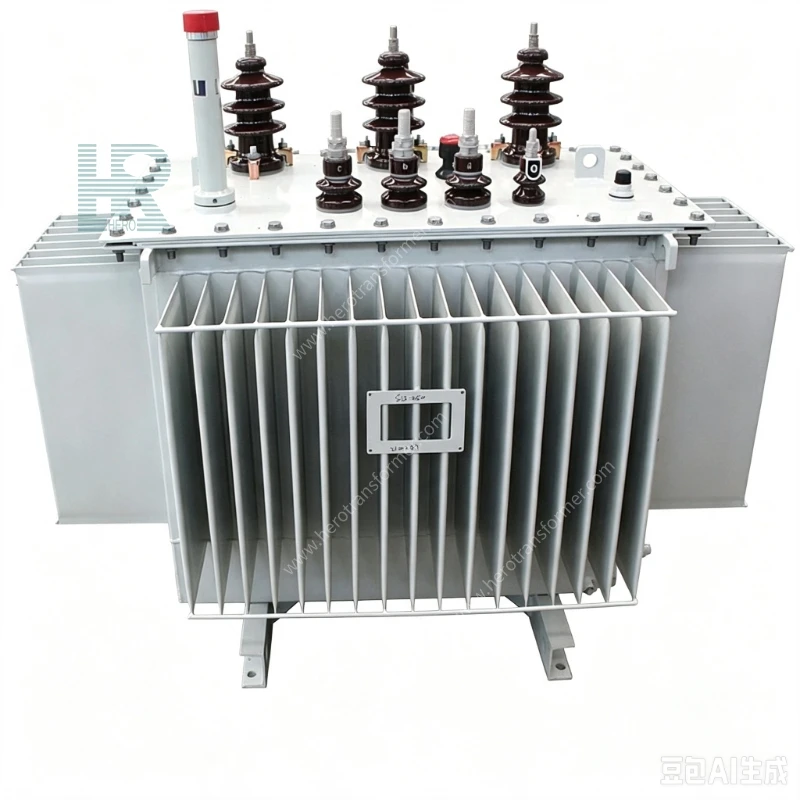

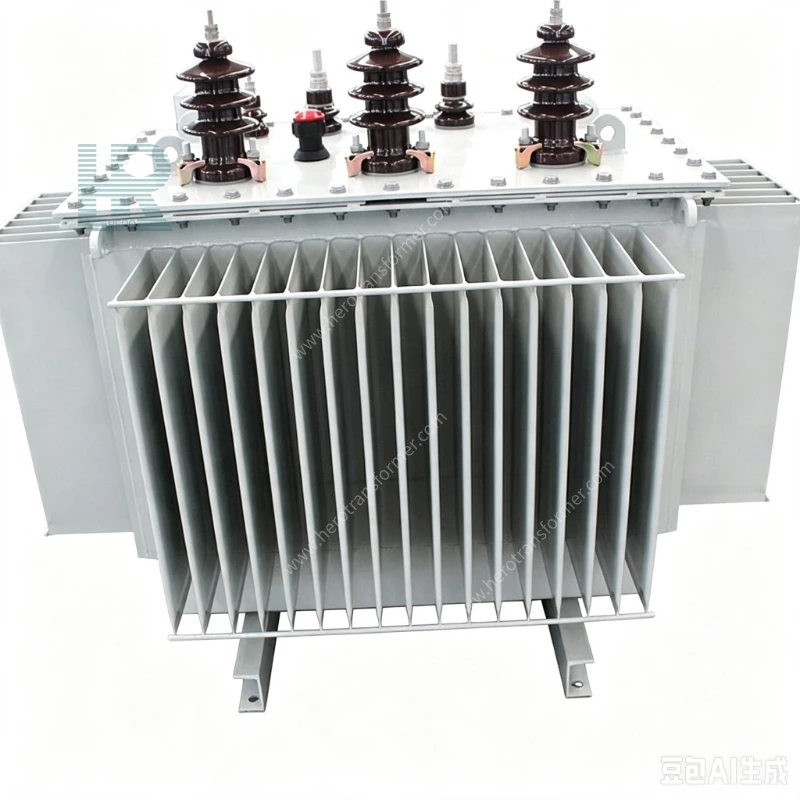

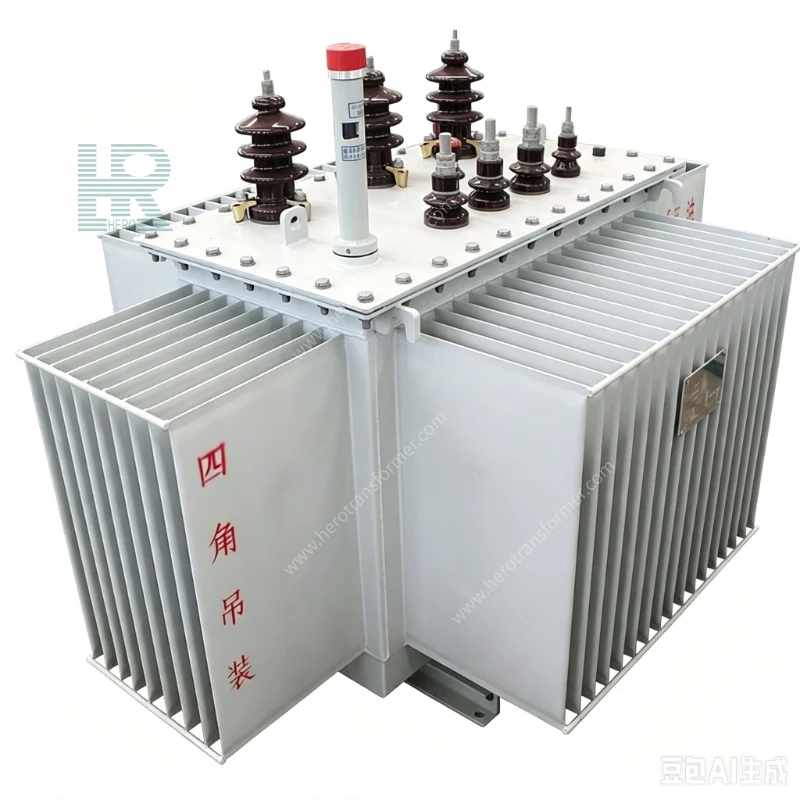

S11-100kVA oil immersed distribution transformer, rated voltage 6kV/400V. Adopts high efficiency grain-oriented silicon steel core and full copper winding, anti-corrosion & high temperature resistant design, stable operation under tropical high temperature environment，the max ambient temperature up to 55℃.
|
Model |
S11-100kva |
|
Phase |
3 |
|
Frequency |
50HZ |
|
Primary Voltage/High voltage |
6kv |
|
Secondary voltage/Low voltage |
400v |
|
Connection Symbol |
Dyn11 |
|
On load loss |
200W |
|
No load loss |
1580W |
|
No load current |
1.8% |
|
Impedance voltage |
4% |
|
Tap range of NLTC(DETC) |
±2*2.5% |
|
Oil weight |
100kg |
|
Total wight |
530kg |
|
Dimensions(L*W*H) MM |
870*820*1110 |
Commercial complex power distribution, light manufacturing factories, small PV/ wind booster stations, urban residential substations, mining auxiliary power supply.
